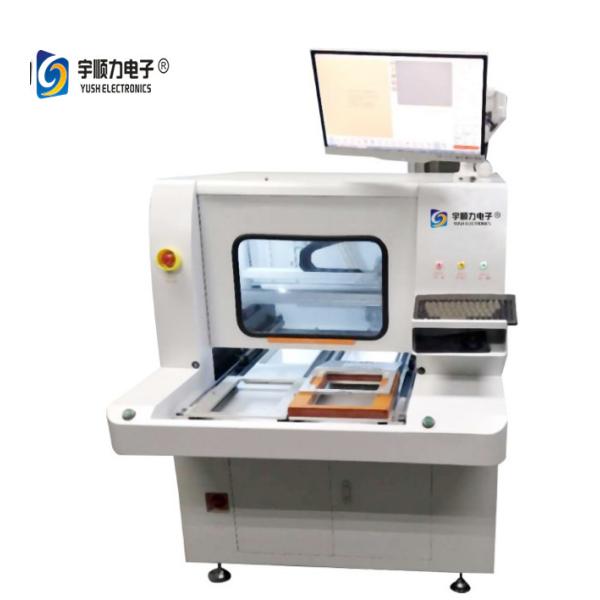

Four-axis precision PCB Router Depanleing machine(Model:YSVC-600 )
Features:
1.Cutting product requirements:Left and right worktables can separate different products at the same time.
2.Cutting height requirements:Left and right worktables can separate different heights and products at the same time.
3.MARK point identification requirements:MARK points of different shapes can be identified, and MARK points can be freely set before each division.
4.Camera:LED aperture brightness can be adjusted in software.
5.Information management function:Support MES information system to seamlessly connect equipment and information management, Open Ethernet Interface, and supports TCP/IP network communication protocol, and necessary related software and programs; Open the BAR CODE function port.
6.Milling cutter management:The software can automatically adjust the height according to the thickness of the PCB board and the toughness length of the cutter to extend the service life of the cutter and standard tool detection.
7.MES docking:Open MES docking port function.
8.BAR CODE scan:Open BAR CODE Scan Port Function.
Specification and parameters:
01. X, Y cutting speed: 0 ~100mm/s
02. Machine Repeat Accuracy: ± 0.01mm
03. X, Y1,Y2 ,Z Control Methods: Industrial IPC and PC
04. X, Y1,Y2 ,Z Drive Mode: AC Fiber Optic Servo Motor
05. Machine Operation and Data Storage: PC System
06. Cutting accuracy: ± 0.05mm
07. Spindle speed: Max 60000rpm
08. Host voltage: 220V 1ψ 50 / 60HZ
09. Air pressure supply: above 4.5kg/cm2
10. Power Consumption: 1.8KVA
11. Dust Collection: Lower Dust Collection (Standard) or Upper Dust Collection
12. Dust collector voltage: 220V (380V) 3ψ
13. Upper dust collector size: L650*W400*H1350mm
14. Dust collector size: L665*W635*H1650mm
