High Quality SMT Printed Circuit Board Cutting Machine for PCB Assembly

Name: High Quality SMT Printed Circuit Board Cutting Machine for PCB Assembly
Brand: YUSH
Price: 39 USD

Wholesale High Quality SMT Printed Circuit Board Cutting Machine for PCB Assembly from china suppliers

Place of Origin : Jiangsu, China

Brand Name : YUSH

MOQ : 1 set

Price : $39,800 / set

Weight : 350kg

Voltage : 220V

Power : 110V/220V AC 60HZ/50HZ

Size : L1300*W400*H1000mm

PCB Thickness : 0.8-3.0mm

Cutting Speed : Adjustable

Top Cutter Adjustment : 0-5mm

Board Width : 15-20mm

Blade Material : SKH51 high speed steel

Core Components : PLC, Motor

Applicable Boards : LED panel, fiberboard, aluminum board (>400mm), special board

Cutting Process : Unlimited

Conveyor Belt : Yes

Multiple Cutters : Yes

Display Screen : Yes

Contact Now

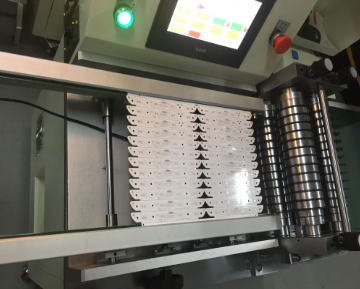

YSVJ-650 High Quality SMT Printed Circuit Board Cutting Machine

Professional PCB depaneling and cutting solution for efficient PCB assembly operations

High Quality SMT Printed Circuit Board Cutting Machine for PCB Assembly

Key Features & Benefits

Integral shaft design for convenient installation and maintenance of top and bottom knives
Computer screen control with production counting and direct gap display
Universal compatibility with all V-cut PCB boards
Stress-reducing cutting technology prevents solder joint cracking
Multiple cutter configuration enables simultaneous cutting of several boards
Adjustable top cutter wheel with 0-5mm fine adjustment capability
Variable knife distance adjustment suitable for single PCB boards within 15-20mm width
SKH51 high-speed steel blades for extended service life and wear resistance
Variable cutting speed control via convenient turn-knob adjustment
Integrated conveyor belt system for automated board handling and next-machine docking
Versatile material compatibility including LED panels, fiberboards, aluminum boards (400mm+), and special boards
High-efficiency operation ideal for mass production environments

Technical Specifications

Power Supply	110V/220V AC 60HZ/50HZ
Machine Dimensions	L1300 × W400 × H1000mm
Weight	350kg
Cutting Process	Unlimited operation capability
PCB Thickness Range	0.8-3.0mm
Applicable Materials	LED panels, fiberboards, aluminum boards (400mm+), special boards

Manufacturer Profile

YUSH Electronic Technology Co., Ltd., founded in 2004 and located in Jiangsu, China, specializes in professional PCB separator and depanelizer electronic equipment machinery. The company maintains advanced production facilities and employs an experienced development team, with half of the staff possessing over 10 years of expertise in the electronic equipment industry.

Since 2004, YUSH has focused on developing and manufacturing PCB separators and depaneling machines, emphasizing product quality, safety, and innovation. The company offers a comprehensive range of manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router solutions, establishing itself as one of China's leading PCB separator production bases.

Frequently Asked Questions

Company Overview

Based in Jiangsu, China since 2014, we serve global markets including Eastern Europe (20%), North America (20%), South America (15%), Southern Europe (10%), Northern Europe (10%), Western Europe (10%), South Asia (10%), and Mid East (5%). Our organization employs 301-500 professionals.

Quality Assurance

We implement pre-production sampling and final inspection before shipment to ensure consistent product quality.

Product Range

PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, V-cut machines

Competitive Advantage

YUSH Electronic Technology combines 20 years of manufacturing expertise with advanced production equipment and experienced engineering teams to deliver high-quality, cost-effective PCB processing solutions.

Service & Support

Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF
Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Languages: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi
